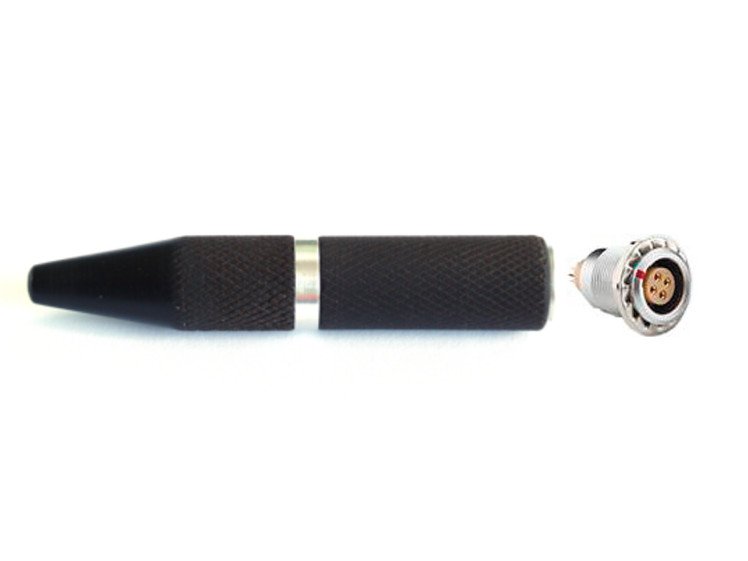

Sensing element of eddy current probe coincides with the handle axis



Designation	Tip Ø ‘D’, mm / inch	Length, mm / inch	Frequency, kHz	Connector	Material
SU450K05DA0	5 / .2	70 / 2.75	400 - 600	Lemo 04	Fe/NFe



SU	450K	05D	A	X
1	2	3	4	5



1. SU – surface probe for surface flaws detection.

2. Probe frequency:

“HZ” designates the Hz range; “К” designates the kHz range; “М” designates the MHz range.

3. Probe tip diameter, mm

4. Probe type designation "А". “А” – Absolute.

5. Probe modification number.
