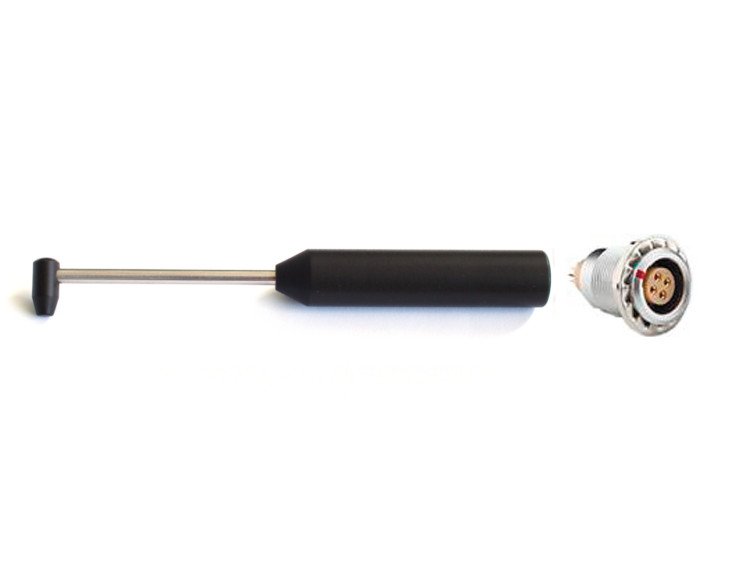

Sensing element of eddy current probe is placed at the angle of 90˚ to the handle axis.



Designation	Tip Ø ‘D’, mm / inch	Drop length, mm / inch	Length, mm / inch	Frequency, kHz	Connector	Material
SU450K5A5Dx8-130 A0	5 / .2	8 / .3	130 / 5	400 - 600	Lemo 04	Fe/NFe



SU	450K	5A	5D	x	8	-	130	A	X
1	2	3	4		5		6	7	8



1. SU – surface probe for surface flaws detection.

2. Probe frequency:

“HZ” designates the Hz range; “К” designates the kHz range; “М” designates the MHz range.

3. Drop angle of a sensing element to the probe axis “5А” is 90°.

4. Probe tip diameter, mm.

5. Drop length, mm.

6. Probe length, mm. Standard length of 130 mm (5”) can be changed upon request.

7. Probe type designation "А". “А” – Absolute.

8. Probe modification number.
