SMARTSCAN Aircraft Wheel Inspection System

SMARTSCAN Aircraft Wheel Inspection System

REQUEST A QUOTE



SMARTSCAN Aircraft Wheel Inspection System is intended for testing of main and nose wheels of aircrafts and helicopters of various world manufacturers such as Messier - Bugatti, Goodrich, Honeywell, Maggitt and others.

Meets the requirement of ISO 15548-1

  • The System ensures the testing of the following
    wheel areas:

  • tubewell;
  • bead seat;
  • flange.
Wheel areas which can be tested with the aircraft wheel inspection system SmartScan
Test object in the inspection area of the aircraft wheel inspection system SmartScan
  • Parameters of the test object



Outer diameters of the tested wheels:

  • minimum - 7.5 in. (190 mm)
  • maximum - 35 in. (900 mm)



Diameters of the centered holes of the tested wheels:

  • minimum - from 1.57 in. (40 mm)
  • maximum - up to 8 in. (200 mm)



  • The System consists of the following components (assemblies):

  • Table (frame) with a tray for wheels;
  • Wheel hub grip mechanism;
  • Wheel lifting / lowering mechanism;
  • Wheel rotating mechanism;
  • Mechanism for ECP movement in horizontal and vertical planes;
  • Support for the reference block;
  • Eddycon C flaw detector stand;
  • System control panel.

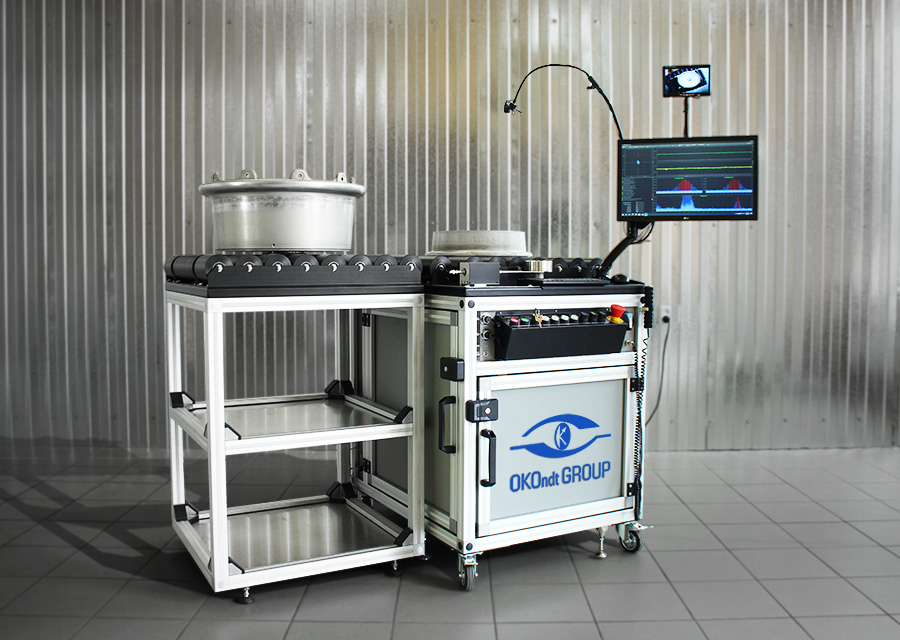

Aircraft wheel inspection system SmartScan and additional table with the wheel lifting/lowering mechanism

The System is produced in two versions:



SMARTSCAN

Model SMARTSCAN enables semi-automated inspection of wheels with portable eddy current flaw detectors of different manufacturers.

The SMARTSCAN kit includes Eddycon C flaw detector.



System for semi-automated inspection of aircraft wheels SmartScan

SMARTSCAN-FA

Model SMARTSCAN-FA enables fully automated cycle of inspection with stop on defect mode, storage of inspection results and database creation, as well as printouts of inspection reports, etc.

Eddycon D flaw detector is delivered in the SMARTSCAN-FA kit.

System for fully automated inspection of aircraft wheels SmartScan-FA

GET A QUICK QUOTE FROM US TODAY



Various versions of the system for aircraft wheel inspection allow wheel shops to select the most suitable kit for their needs to maximize output and automate recording of inspection results.

Reports of wheel inspection may be crucial as a proof of performed wheel inspection and its results.

Smartscan System Benefits:

  • A unique algorithm of ECP “sticking” to the inspected surface, i.e. tracking the wheel profile even in case of vertical and horizontal wheel shifts;
  • Wheel inspection in the “flange up” and “flange down” positions;
  • Reliable wheel centering for heavy weight wheels;
  • Adapters for inspection of wheels without a hub with a driven nipple (upon request);
  • A remote “Pause” button allowing to stop testing and perform a manual confirmatory testing procedure;
  • Lockups which stop excessive force used in bringing the ECP movement mechanism to prevent an operator’s injuries and mechanical damage of the ECP.

GET A QUICK QUOTE FROM US TODAY

REQUEST A QUOTE



System Features:

  • The System is controlled from the operator’s control panel as well as from the special purpose software interface;
  • Quick manual bringing of the ECP to an inspected wheel to determine the settings (wheel lifting height, coordinates of ECP progression for inspection start and completion);
  • Automated ECP performance validation by scanning the reference block before inspection and on its completion;
  • Adjustability of the inspection helix from .004 to .08 in. (from 0.1 to 2 mm) as well as of wheel rotation speed;
  • Wheel hub grip mechanism allows to center aircraft wheels weighing up to 330lbs (150 kg) in the inspection position and rotate them at a speed of 120 rpm;
  • Manual and automatic stop on defect;
  • Return to defect function;
  • Ethernet connection;
  • Saving inspection results to the Eddycon C memory (SMARTSCAN) or PC (SMARTSCAN-FA);
  • The System software ensures individual inspection setup and saving settings for all the inspected wheels for future use;
  • Due to high-quality components and modularity of the System, its repair takes minimum time;
  • Automated process allows inspecting wheel halves with increased output in comparison with manual inspection and still ensuring the area of inspection is 100% scanned;
  • Ease of use.
Main and nose wheels of the airplane

SMARTSCAN System Specifications

Model SmartScan SmartScan-FA
System type Semi-automated Automated
Overall dimensions 29 x 39 x 49 (in.)*
750 × 990 × 1250 (mm)*
47 x 31 x 39 (in.)*
1200 × 800 × 1000 (mm)*
Weight No more than 1102 lbs (500 kg) No more than 772 lbs (350 kg)
Flaw detector Eddycon C Eddycon D
ECP type

Pencil probe type with a cylindrical head.

Frequency — 100 kHz, 200 kHz, 500 kHz

ECP diameter – 15/64" (6 mm)

Other standard ECP types – on request

Pencil probe type with a cylindrical head.

Frequency — 100 kHz, 200 kHz, 500 kHz

ECP diameter – 15/64" (6 mm)

Other standard ECP types – on request

Max wheel diameter 35 in. (900 mm) 35 in. (900 mm)
Max System load 330 lbs (150 kg) 330 lbs (150 kg)
Inspection helix Adjustable from .004 to .08 in. (from 0.1 to 2 mm) Adjustable from .004 to .08 in. (from 0.1 to 2 mm)
Inspection area Adaptive tracking of the wheel profile surface Adaptive tracking of the wheel profile surface
ECP vertical movement 17 in. (430 mm) 17 in. (430 mm)
Rotation speed 10-120 rpm 10-120 rpm
Inspection speed up to 33 fps (10 m/s) up to 75 fps (23 m/s)
Alarms Visual and acoustic Visual and acoustic
Power supply 110-240 V, 50/60 Hz 110-240 V, 50/60 Hz
Data recording and storage

Yes

(Eddycon C memory)

Yes

(PC hard drive, database)

Manual inspection

Yes

(set of ECPs for manual inspection)

Yes

(set of ECPs for manual inspection)

Remote “Pause” button Yes Yes
Wheel position Flange up/Flange down Flange up/Flange down
Automatic reference block calibration + +
Automatic stop on defect - +
Turntable rubber/plastic coated rolls rubber/plastic coated rolls
Control panel built-in built-in
Operation modes Block, Manual (with automatic reference block calibration), Automated Block, Manual (with automatic reference block calibration), Stop on defect, Automated
Ports 3 – USB ports, HDMI or Display port, Ethernet port 3 – USB ports, HDMI or Display port, Ethernet port
PC computer set Wireless keyboard and mouse, monitor, system unit, special purpose software Wireless keyboard and mouse, monitor, system unit, special purpose software
Adapter set For wheels without hubs
(p/n  C20626200  (SAFRAN),
p/n  3-1674 (GOODRICH)
For wheels without hubs
(p/n  C20626200  (SAFRAN),
p/n  3-1674 (GOODRICH)
